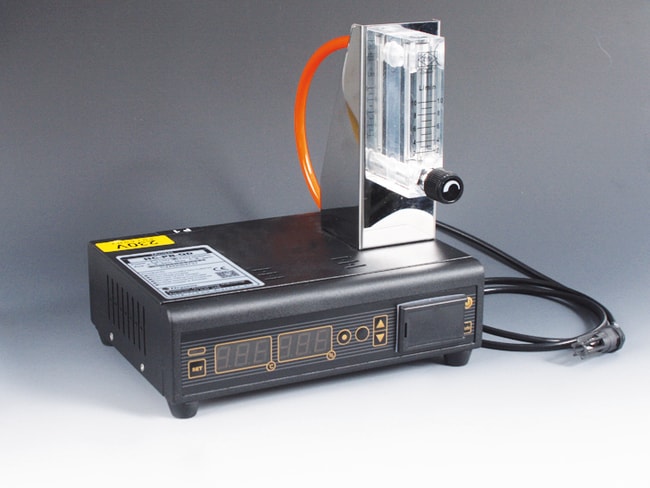

Bohlender™ SICCO™ Gas Dosing Controller

Product Code. 17157684
Click to view available options
Airflow Rate:
2 to 10 L/min
Unit Size:
Each
This item is not returnable. View return policy

Product Code. 17157684

Brand: Bohlender™ V177502

Please to purchase this item. Need a web account? Register with us today!

This item is not returnable. View return policy

Description

Gas Dosing Controller for control of the inlet of gas into a Glove Box.

  • Controls the inlet of gas into the SICCO™™ Glove Box to reduce gas consumption
  • Set consists of a gas dosing controller, a sensor cable, tubing for connecting the flow meter with the measuring instrument and a power cable
  • Electrical power connection and two free cable lead-ins (one for gas supply and one for the sensor) are required
  • Setting Range Humidity: 0 to 50% rF / rH
  • Setting Range Temperature: -20 to 60°C
  • Display Range: 0.1 to 99%, -30 to 70°C
  • Accuracy of Sensor: ±3% rF/rH, ±0.5°C
  • Resolution: 0.1 °rF/rH, 0.1°C
  • To achieve constant humidity inside the work space of your glove box, it is recommended to use the SICCO™ Gas Dosing Controller, which is installed between the gas tap and the glove box
  • Need one cable for inserting the sensor and the other for connecting the tube of the Gas Dosing Controller with the work space of the glove box
  • Simply adjust the required relative humidity directly on the Gas Dosing Controller, the gas supply is open
  • When the adjusted value is reached, the supply on the Gas Dosing Controller closes; the sensor inside the work space constantly monitors humidity
  • Once humidity deviates for more than 1% of adjusted value, gas supply automatically opens again after 3 minutes so that humidity is kept on the same level
  • Time lag of 3 min prevents an unnecessary inlet of gas (i.e. if the door of the glove box is only opened for a short period of time)
  • For a deviation larger than 5% an alarm signal sounds
  • By means of automatic switch-on and switch-off function, you can save up to 60% of gas

Specifications

Airflow Rate 2 to 10 L/min
Weight (English) 4 lb.
Weight (Metric) 1.8 Kg
Length (English) 3.9 ft.
Includes Gas Dosing Controller, 1200 mm Sensor Cable, Tubing for Connection
Length (Metric) 1.2 m
Voltage 230 V
Frequency 50 Hz
