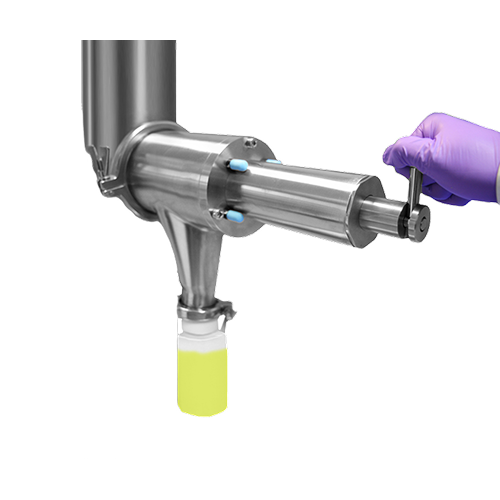

FreeGlide Powder Sampler

The only in-line powder sampler guaranteed not to jam.

Why Choose the Sampling Systems FreeGlide Powder Sampler?

GMP Correct

All product contact components are crafted from FDA-compliant materials, including 316L Stainless Steel and food-grade polymers, ensuring safety and durability. The full welds are ground and polished to enable easy cleaning and maintain hygienic standards. These features make the product ideal for use in both food and pharmaceutical industries.

Pipette Icon

Unique Design

The innovative design ensures that powder samples remain unaltered during the sampling process. Additionally, the full bore of the production pipe remains unobstructed between uses. The patented diaphragm mechanism guarantees smooth operation, preventing any product jamming and ensuring consistent performance.

Hand icon

Flexible Solution

Available in both manual and automatic versions, the FreeGlide is a versatile solution for various production needs. It is designed for use with vertical production pipes exceeding 100mm in diameter, ensuring compatibility with a wide range of systems. With over 1,000 units sold worldwide, the FreeGlide is a trusted choice for industries seeking efficient, reliable, and flexible powder sampling solutions.

User icon

Applicable Solutions

Eppendorf Research 3 Neo Application Image

In-Line Powder Sampling in Food and Pharma Industries

Food and pharmaceutical companies take in-line powder samples from the production line for several key reasons. For instance, after the powder has been milled, samples are often collected for particle size analysis to ensure the powder blend is of the correct size before it proceeds to the next stage of processing. Another common sampling point is at the end of the line, just before the packing head. This final sampling opportunity allows for testing the product before it leaves the production line, ensuring the highest quality and consistency before packaging.

Learn More

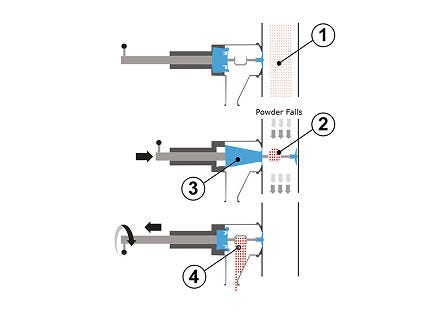

1. Unobstructed Sampling

The full bore of the pipe is available for powder flow when the FreeGlide is not in use.

2. Convenient Sampling

The 316L stainless steel sampling cup is extended into the downpipe and collects a sample of free-flowing powder.

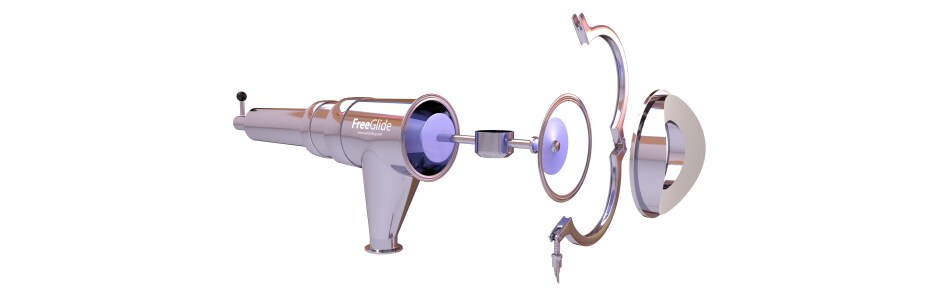

3. Patented Diaphragm

The diaphragm extends and retracts, preventing contamination and jamming, ensuring smooth and reliable operation.



4. Easy Discharging

The sampling cup is retracted and inverted, allowing the powder to fall down the discharge chute for easy collection.

Eppendorf Research 3 Neo Specifications

Related Videos

Watch the FreeGlide Video

Convenient in-line powder sampling.

Related Documentation

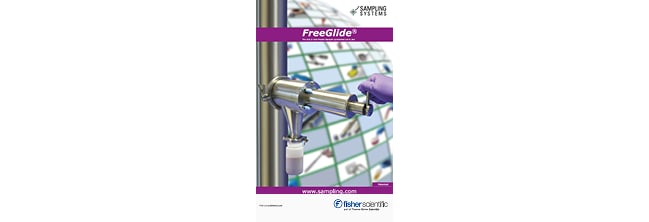

FreeGlide Brochure

Download
PDF Image

FAQ

We will send a one-page questionnaire which will instantly tell us if your application is compatible with the FreeGlide powder sampler.

Sampling Systems supplies the FreeGlide and front boss. The customer is responsible for installation.

Downpipes need to be at least 100mm in diameter, but there is no maximum.
